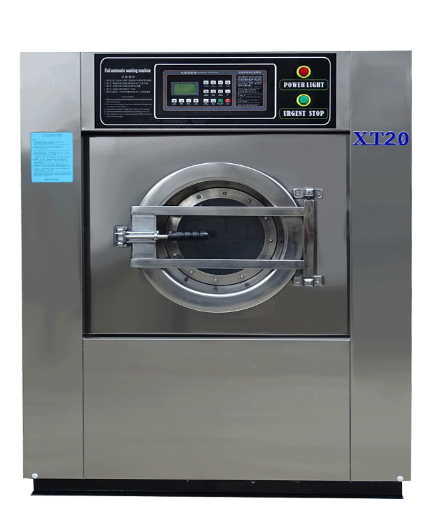

20kg washer extractor

1.Full-suspended Automatic industrial washer extractormachines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;2.It adopts SUS304 stainless steel panels and inner pot for longer service life, and a


1. Full-suspended Automatic industrial washer extractor machines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;

2. It adopts SUS304 stainless steel panels and inner pot for longer service life, and also much easier to be cleaned;

3. Liquid cylinder is with a special anti-corrosion treatment , very durable;

4. The whole washing tank system is installed suspended on the spring and damping devices, shock absorption is up to 95%, and without foundation requirse when using;

5. It is with automatic detergent separation container, neither washing power accumulates nor the washing additives can not fully dissolves and then rot the cloth and leather;

6. It is fully controlled by computer, with frequency to adjust washing program, with clear LCD screen display failure and functional self-checking system to make it easier to maintain;

7. Electrical control components all adopt high-quality components, motors adopts high-quality special motor, transducer adopts LS brand which is from South Korea.



Model


XT-15F

XT-20F

XT-25F

Rated capacity

kg

15

20

25

Tumble volume

Lt

152

200

250

Washing rotation

r/min

37

37

37

Moderate

r/min

400

400

400

Fast

r/min

850

800

800

Motor power

kw

1.5

2.2

3

Inveter power

kw

1.5

2.2

3.7

Drain tube

mm

50

50

50

Water inlet tube

mm

3/4''

3/4''

3/4''

Heating power


6

6

9

External dimension

H

1600

1600

1600

D

1100

1100

1150

W

1000

1000

1100

Machine weight

kg

600

680

750

Model


XT-30F

XT-50F

XT0100F

XT-120F

XT-150F

Rated capacity

kg

30

50

100

120

150

Tumble volume

Lt

300

520

920

1200

1500

Washing rotation

r/min

36

36

32

32

30

Uniform rotation

r/min

72

72

64

64

60

Fitted clothes doors diameter

mm

420

540

630

630

850

Moderate

r/min

400

375

300

300

250

Fast

r/min

800

750

670

670

650

Motor power

kw

4

5.5

7.5

11

15

Inveter power

kw

5.5

7.5

11

18

22

Drain valve


φ90

φ140

φ140

φ160

φ160×2

Hot water tube


3/2’’

3/2’’

3/2’’

3/2’’

3/2’’×2

Cold water tube


1’’

1’’

1’’

1’’

1’’×2

External dimension

H

1750

1900

2040

2040

2300

D

1350

1750

1950

2200

2000

W

1350

1500

1755

1755

1900

Machine weight

kg

1200

2400

3200

3900

51000
