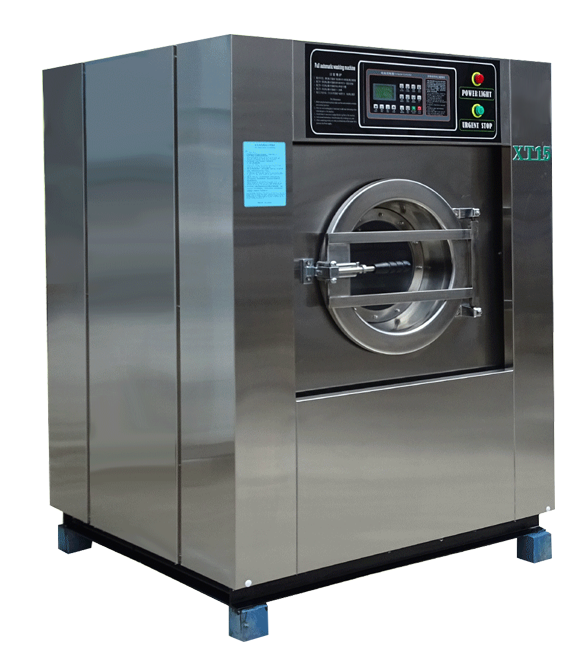

1. Full-suspended Automatic industrial washer extractor machines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;
2. It adopts SUS304 stainless steel panels and inner pot for longer service life, and also much easier to be cleaned;
3. Liquid cylinder is with a special anti-corrosion treatment , very durable;
4. The whole washing tank system is installed suspended on the spring and damping devices, shock absorption is up to 95%, and without foundation requirse when using;
5. It is with automatic detergent separation container, neither washing power accumulates nor the washing additives can not fully dissolves and then rot the cloth and leather;
6. It is fully controlled by computer, with frequency to adjust washing program, with clear LCD screen display failure and functional self-checking system to make it easier to maintain;
7. Electrical control components all adopt high-quality components, motors adopts high-quality special motor, transducer adopts LS brand which is from South Korea.
Model | XT-15F | XT-20F | XT-25F | |
Rated capacity | kg | 15 | 20 | 25 |
Tumble volume | Lt | 152 | 200 | 250 |
Washing rotation | r/min | 37 | 37 | 37 |
Moderate | r/min | 400 | 400 | 400 |
Fast | r/min | 850 | 800 | 800 |
Motor power | kw | 1.5 | 2.2 | 3 |
Inveter power | kw | 1.5 | 2.2 | 3.7 |
Drain tube | mm | 50 | 50 | 50 |
Water inlet tube | mm | 3/4'' | 3/4'' | 3/4'' |
Heating power | 6 | 6 | 9 | |
External dimension | H | 1600 | 1600 | 1600 |
D | 1100 | 1100 | 1150 | |
W | 1000 | 1000 | 1100 | |
Machine weight | kg | 600 | 680 | 750 |
