Classification

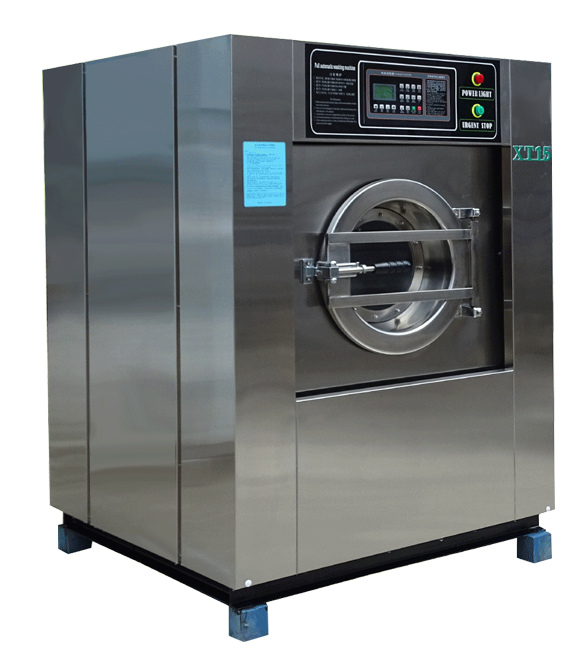

15kg washer extractor

1. Full-suspended Automatic industrial washer extractor machines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;

2. It adopts SUS304 stainless steel panels and inner pot for longer service life, and also much easier to be cleaned;

3. Liquid cylinder is with a special anti-corrosion treatment , very durable;

4. The whole washing tank system is installed suspended on the spring and damping devices, shock absorption is up to 95%, and without foundation requirse when using;

5. It is with automatic detergent separation container, neither washing power accumulates nor the washing additives can not fully dissolves and then rot the cloth and leather;

6. It is fully controlled by computer, with frequency to adjust washing program, with clear LCD screen display failure and functional self-checking system to make it easier to maintain;

7. Electrical control components all adopt high-quality components, motors adopts high-quality special motor, transducer adopts LS brand which is from South Korea.

Model		XT-15F	XT-20F	XT-25F
Rated capacity	kg	15	20	25
Tumble volume	Lt	152	200	250
Washing rotation	r/min	37	37	37
Moderate	r/min	400	400	400
Fast	r/min	850	800	800
Motor power	kw	1.5	2.2	3
Inveter power	kw	1.5	2.2	3.7
Drain tube	mm	50	50	50
Water inlet tube	mm	3/4＇＇	3/4＇＇	3/4＇＇
Heating power		6	6	9
External dimension	H	1600	1600	1600
	D	1100	1100	1150
	W	1000	1000	1100
Machine weight	kg	600	680	750

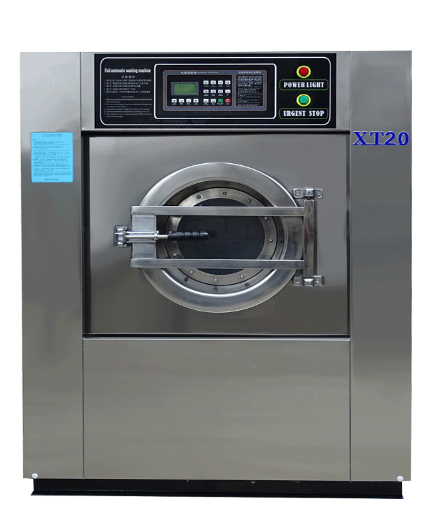

20kg washer extractor

1. Full-suspended Automatic industrial washer extractor machines in which inner and outer cylinder interface adopt a face to face mode can effectively prevent accidental damage to cloth and leather;

2. It adopts SUS304 stainless steel panels and inner pot for longer service life, and also much easier to be cleaned;

3. Liquid cylinder is with a special anti-corrosion treatment , very durable;

4. The whole washing tank system is installed suspended on the spring and damping devices, shock absorption is up to 95%, and without foundation requirse when using;

5. It is with automatic detergent separation container, neither washing power accumulates nor the washing additives can not fully dissolves and then rot the cloth and leather;

6. It is fully controlled by computer, with frequency to adjust washing program, with clear LCD screen display failure and functional self-checking system to make it easier to maintain;

7. Electrical control components all adopt high-quality components, motors adopts high-quality special motor, transducer adopts LS brand which is from South Korea.

Model		XT-15F	XT-20F	XT-25F
Rated capacity	kg	15	20	25
Tumble volume	Lt	152	200	250
Washing rotation	r/min	37	37	37
Moderate	r/min	400	400	400
Fast	r/min	850	800	800
Motor power	kw	1.5	2.2	3
Inveter power	kw	1.5	2.2	3.7
Drain tube	mm	50	50	50
Water inlet tube	mm	3/4＇＇	3/4＇＇	3/4＇＇
Heating power		6	6	9
External dimension	H	1600	1600	1600
	D	1100	1100	1150
	W	1000	1000	1100
Machine weight	kg	600	680	750

Model		XT-30F	XT-50F	XT0100F	XT-120F	XT-150F
Rated capacity	kg	30	50	100	120	150
Tumble volume	Lt	300	520	920	1200	1500
Washing rotation	r/min	36	36	32	32	30
Uniform rotation	r/min	72	72	64	64	60
Fitted clothes doors diameter	mm	420	540	630	630	850
Moderate	r/min	400	375	300	300	250
Fast	r/min	800	750	670	670	650
Motor power	kw	4	5.5	7.5	11	15
Inveter power	kw	5.5	7.5	11	18	22
Drain valve		φ90	φ140	φ140	φ160	φ160×2
Hot water tube		3/2’’	3/2’’	3/2’’	3/2’’	3/2’’×2
Cold water tube		1’’	1’’	1’’	1’’	1’’×2
External dimension	H	1750	1900	2040	2040	2300
	D	1350	1750	1950	2200	2000
	W	1350	1500	1755	1755	1900
Machine weight	kg	1200	2400	3200	3900	51000
