    Classification

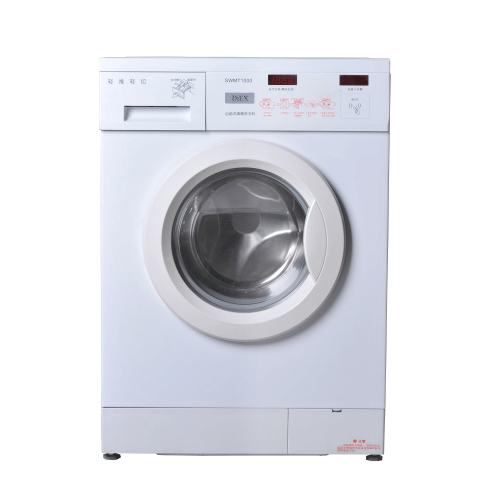

  • 6kg COIN WASHER


    1.All metal cabinet, strong to resist impact, suitable to public use

    2.Power off memory,

    3.Hot water washing program setting, more healthy

    4.Hot and cold water inlet valve, with heating element

    5.Safety and reliable separated commercial payment system for coin and credit card

    6.Soap, beat type washing to avoid clothes winding, more care to clothes

    7.Self balance technology, low noisy and vibration


    Model No.

    SWMT601

    Power

     220-240V/50Hz

    Drum size

     Φ468*307

    Capacity

    6kg

    Motor power

     380W

    Heating power

     2000W

    Installation size

    600*530*850mm

    Package size

    662*575*890mm

    N/G weight

     62/67kg

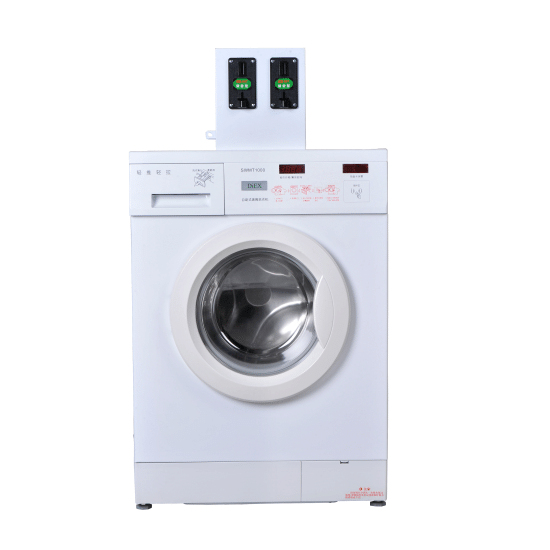

  • 8.6kg COIN WASHER

    1.All metal cabinet, strong to resist impact, suitable to public use

    2.Power off memory,

    3.Hot water washing program setting, more healthy

    4.Hot and cold water inlet valve, with heating element

    5.Safety and reliable separated commercial payment system for coin and credit card

    6.Soap, beat type washing to avoid clothes winding, more care to clothes

    7.Self balance technology, low noisy and vibration


    Model No.

    SWMT8601

    Power

     220-240V/50Hz

    Drum size

     Φ481*400

    Capacity

    8.6kg

    Motor power

     450W

    Heating power

     2000W

    Installation size

    600*640*850mm

    Package size

    662*670*890mm

    N/G weight

     72/77kg


  • 13kg COIN WASHER


    1. With power off memory function

    2. With hot water wash program

    3. With both hot water and cold water inlet valves, with electric heating function

    4. With soak and beat washing type, it can avoid the tangling of clothes

    5. Self-balance technology makes machine working more stable and ensure low noise

    6. With safe and reliable newly designed independent commercial purpose card and coin op system

    7. With program controlled card op and coin op system

    8. Front loading washer saves 50% water than top loading washer

    9. Higher washing cleanliness by increasing the interaction among clothes, water and detergent in the programs

    10. Easy maintenance by opening the front panel

    11. 13kgs capacity makes it easy to wash the big linen, such bed sheet, curtains etc.



    Model No.

    SWMT1301

    Power

     220-240V/50Hz

    Drum size

     Φ556*430

    Capacity

    13kg

    Motor power

     500W

    Heating power

     3000W

    Installation size

    800*840*1050mm

    Package size

    880*900*1250mm

    N/G weight

     140/156kg

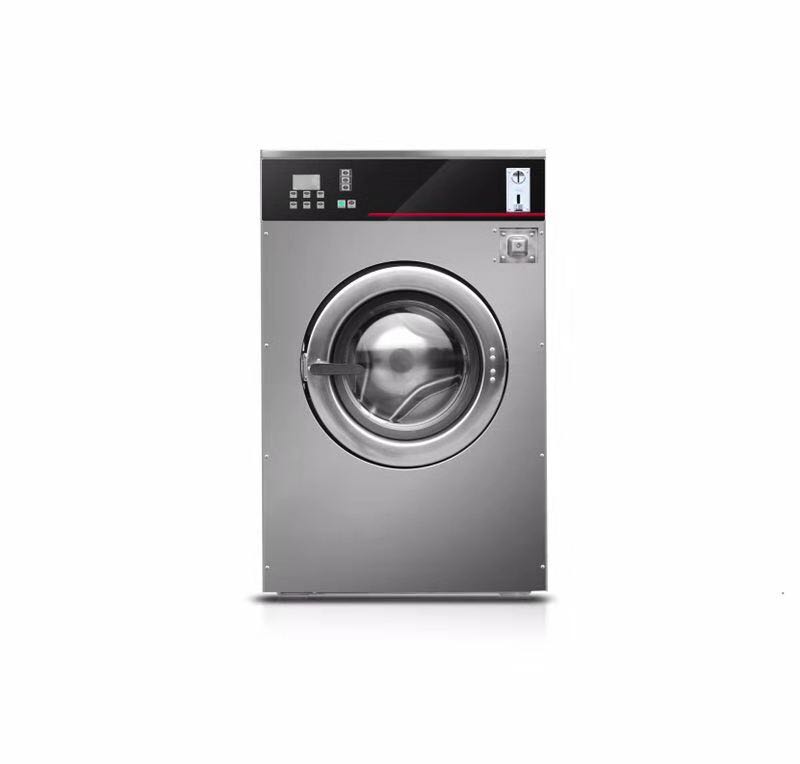

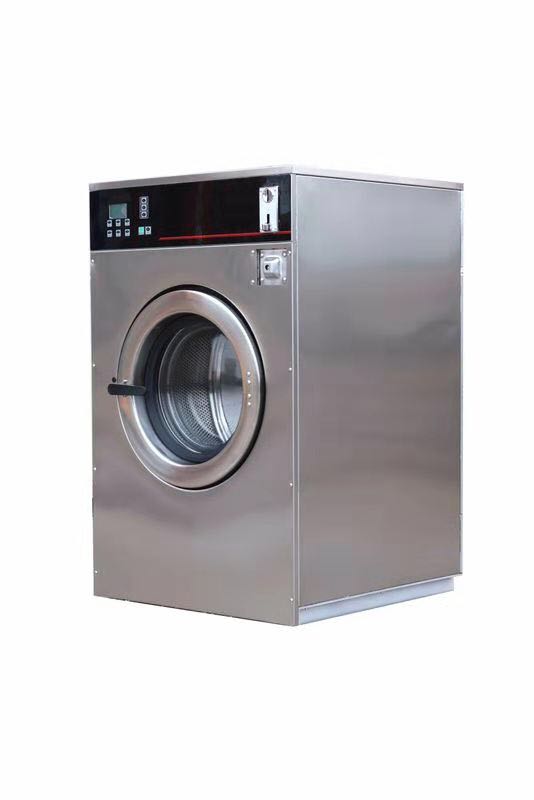

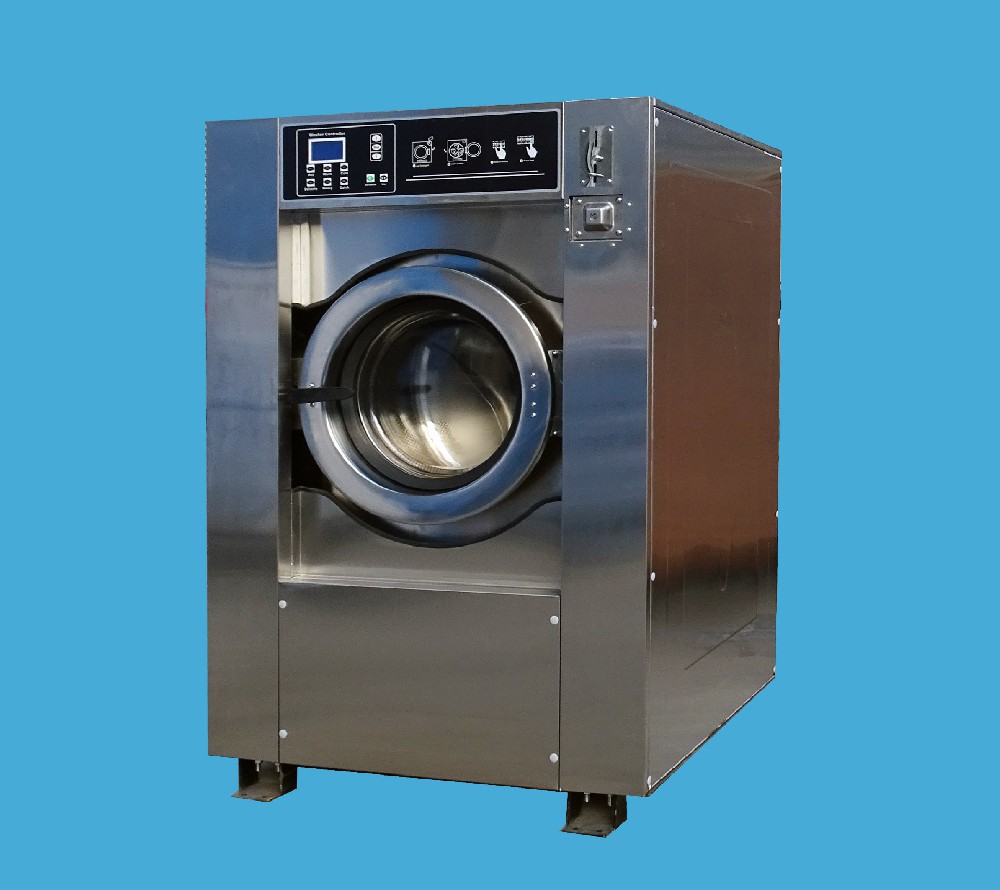

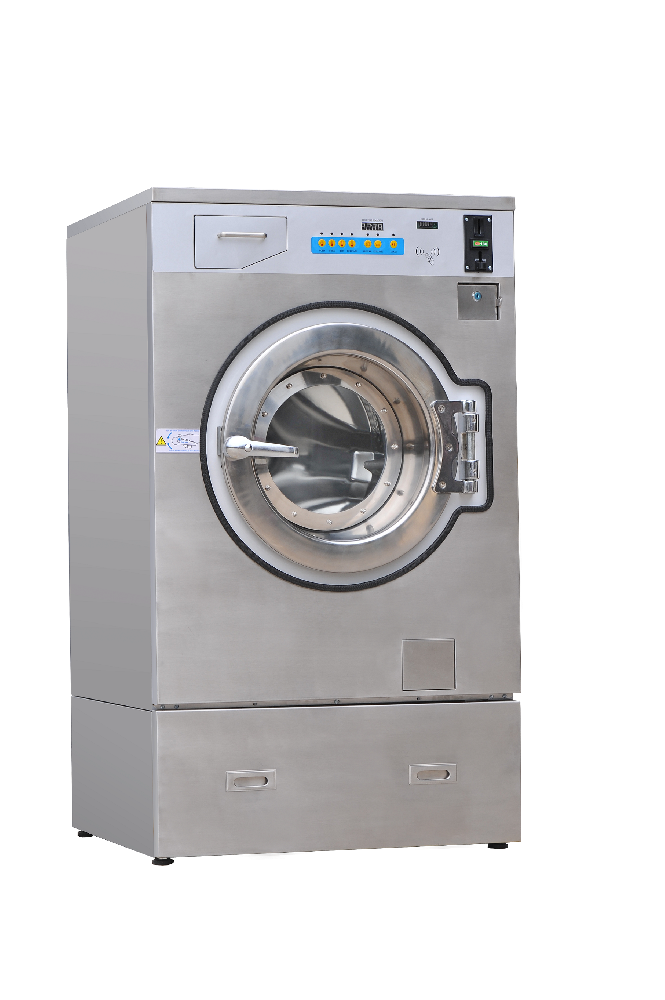

  • 12kg-25kg COIN WASHING MACHINE


    1. Electric or steam heated.

    2. Panel and drum adopt high quality stainless steel, acid and alkali resistance, anti-corrosion, good appearance, long life.
    3. With mechanical suspension shock structure, low noise, free standing.
    4. Adopted imported seal, sealing is good, no leakage.
    5. Fully programmable electronic control, fault indication system.
    6, Electrically operated Drain Valve.

    All information is subject to change without notice.


    Model


    ST-12

    ST-15

    ST-22

    ST-25

    Drum Dimension

    mm

    Φ580x390

    Φ670x475

    Φ720x545

    Φ800x545

    Drum Voluem

    l

    103

    167

    221

    274

    Drum Speed

    r/min

    52/700

    40/850

    46/800

    46/750

    Motor Power

    kw

    1.5

    1.5

    2.2

    3

    Inverter Power

    kw

    1.5

    1.5

    2.2

    3.7

    Dimension ( L*W*H)

    mm

    1100x1000x1500

    1100x1000x1500

    1150x1060x1550

    1120x1100x1600

    Net Weight

    kg

    480

    520

    580

    700

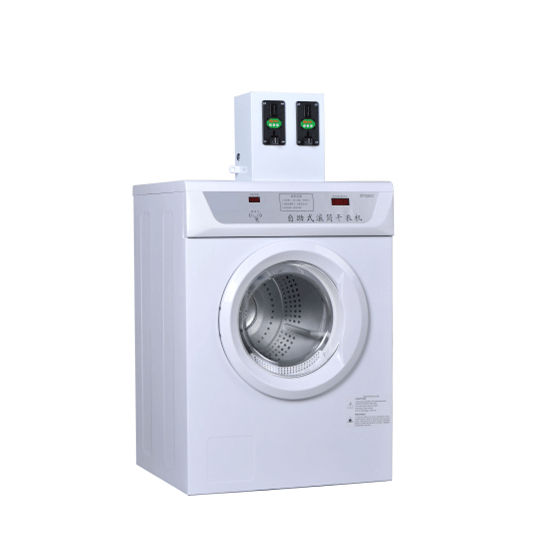

  • 6kg/8.6kg COMMERCIAL COIN DRYER


    1. Basket rotates forward and reverse.

    2. Program controlled intelligent card op system

    3. Air cool, 40℃,57℃,70℃ drying enable it to dry most kinds of garment

    4. Powerful heating system shortens the drying time

    5. Card op and coin op is available


    Model NO.

    STGD601

    STGDZ860

    Capacity

    6kg

    8.6kg

    Power

    220-240v/50hz

    220-240v/50hz

    Rated Power

    1700w/3200w

    3200w

    Motor Power

    110w

    110w

    Dimension

    595*590*840mm

    636*740*850mm

    Weight

    32kg

    65kg


  • 12kg COIN DRYER


    1. Adopt to hard -wried fixed system
    2. Can set up the coin operation function
    3. Deterbent box inside of the machine ,it can avoid corrosion clothes
    4. Large drum made of high quality stainless steel ,reduce damage from garment.
    5. Reasonable drainage structure will keep the room clean. 6. LCD intelligent control board,easy to operate and simple to learn.

    7. High quality drum with small mesh,no abrasion damage to clothes. 8, suit for all coins


    Model


    XTC-12

    washing Capacity

    kg

    12

    Drum Dimension

    mm

    Φ670x475

    Drum Volume

    l

    167

    Drum Speed

    r/min

    50/850

    Voltage

    v

    220/240/380/440

    Motor Power

    kw

    1.5

    heating Power

    kw

    2.2

    Dimension

    mm

    1100x1000x1500

    Net Weight

    kg

    350



  • 15kg COIN DRYER


    1 . Adopt to hard -wried fixed system
    2 . Can set up the coin operation function
    3 . Deterbent box inside of the machine ,it can avoid corrosion clothes
    4 . Large drum made of high quality stainless steel ,reduce damage from garment.
    5 . Reasonable drainage structure will keep the room clean. 6.LCD intelligent control board,easy to operate and simple to learn.

    7 High quality drum with small mesh,no abrasion damage to clothes. 8, suit for all coins


    Model


    XTC-15

    washing Capacity

    kg

    15

    Drum Dimension

    mm

    Φ720x545

    Drum Volume

    l

    221

    Drum Speed

    r/min

    46/800

    Voltage

    v

    220/240/380/440

    Motor Power

    kw

    2.2

    heating Power

    kw

    3

    Dimension

    mm

    1150x1060x1550

    Net Weight

    kg

    500

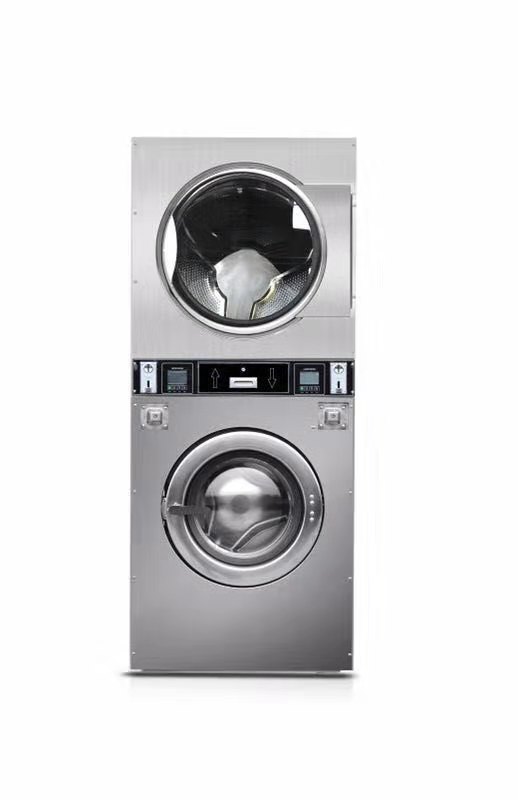

  • STACK WASHER DRYER

    1. The washing and drying work runs individually due to the separate controller

    2. Stack washer dryer saves working space

    3. Self-balance technology makes machine working more stable

    4. Stainless steel basket ensure anti-rust

    5. High quality heavy duty bearing(NSK)

    6. No requirement to install the machine with bolts, and the bolts can be adjusted to ensure the machine smooth and steady on the ground

    7. Dryer basket rotates forward and reverses

    8. With program controlled card op and coin op system



    Model No.

    SXHTGW60-60

    SXHTGW86-86

    Power

    220-240V/50Hz

    220-240V/50Hz

    W/M Drum size

    φ468*307

    φ481*400

    Washing Capacity

    6kg

    8.6kg

    W/M Motor power

     450W

     450W

    W/M Heating power

     2000W

     2000W

    D/M drum size

    120L

    156L

    Drying heating power

    3000W

    3000W

    Drying spin speed

    45rpm

    45rpm

    Drying type

    Ventilation

    Ventilation

    Installation size

    700*750*1740mm

    700*750*1740mm

    Package size

    780*820*1920mm

    780*820*1920mm

    N/G weight

     172/182kg

     172/182kg




  • 12kg STACK WASHER DRYER


    1. Full stainless SS304 cabinet and drum

    2. Three programs for both washing machine and drying machine

    3. Program time and coin price can be set by owner.

    4. Stack washer and dryer machine, saves space.

    5. With mechanical suspension shock structure, low noise, free standing.

    6. CE certified, reliable quality

    7. Capacity can be 12kg, 15kg, 22kg, 25kg.

    8. Electric heating or Gas heating optional


    Rated Capacity

    12kg(2个)

    Washer

    Drum Size

    670*340

    Washing Speed

    37r/min

    Neutral

    415r/min

    High Spin

    800r/min

    Motor Power

    1.5kw

    Power Supply

    220v/380v/415v

    Inverter Power

    2.2kw

    Outlet Water Pipe

    3inch

    Inlet Water Pipe

    6分

    Dryer

    Drum Size

    750*480

    Drying Time

    40-60min

    Motor Power

    0.12

    Power Supply

    220v/380v/415v

    Fan Power

    0.55

    Dimension(L*W*H)

    930*880*2080mm

    Weight

    450kg



  • 15kg STACK WASHER DRYER


    1. Full stainless SS304 cabinet and drum

    2. Three programs for both washing machine and drying machine

    3. Program time and coin price can be set by owner.

    4. Stack washer and dryer machine, saves space.

    5. With mechanical suspension shock structure, low noise, free standing.

    6. CE certified, reliable quality

    7. Capacity can be 12kg, 15kg, 22kg, 25kg.

    8. Electric heating or Gas heating optional





    Parameter

    Cpacity

    15kg

    Dimension

    980*960*2060mm

    Washer

    Drum  Size

    700*360

    Heating Power

    6kg

    Motor Power

    1.5kw

    Inverter

    1.5kw

    Dryer

    Drum  Size

    750*600

    Blower

    0.37kw

    Motor Power

    0.12kw

    Heating Power

    6kw
